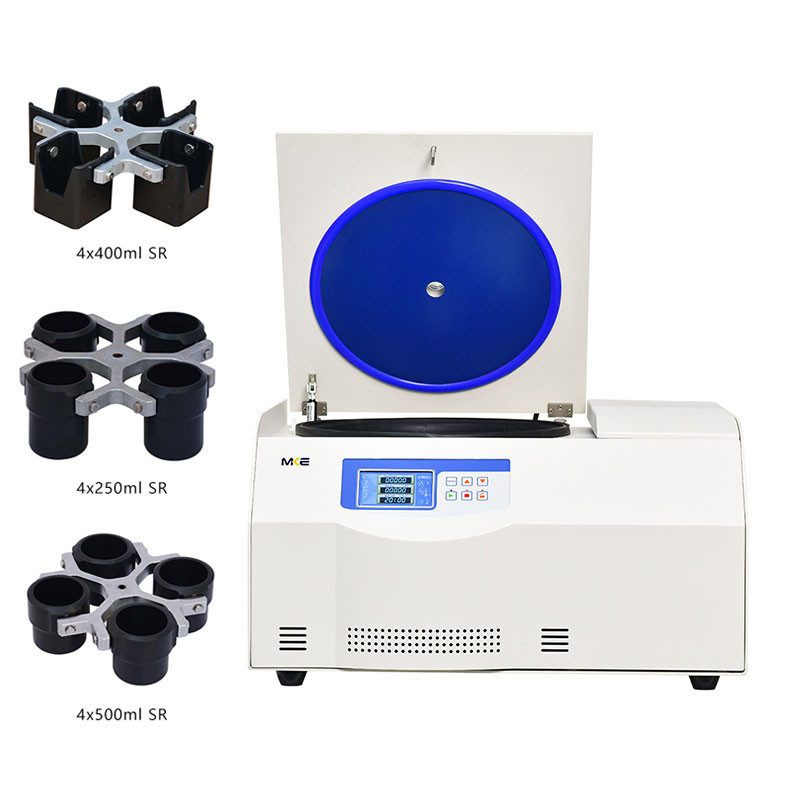

100-20000 rpm High-Speed Refrigerated Centrifuge Temperature Controlled -20 ℃ to +40℃
  • 100-20000 rpm High-Speed Refrigerated Centrifuge Temperature Controlled -20 ℃ to +40℃
  • 100-20000 rpm High-Speed Refrigerated Centrifuge Temperature Controlled -20 ℃ to +40℃
  • 100-20000 rpm High-Speed Refrigerated Centrifuge Temperature Controlled -20 ℃ to +40℃
  • 100-20000 rpm High-Speed Refrigerated Centrifuge Temperature Controlled -20 ℃ to +40℃
  • 100-20000 rpm High-Speed Refrigerated Centrifuge Temperature Controlled -20 ℃ to +40℃
100-20000 rpm High-Speed Refrigerated Centrifuge Temperature Controlled -20 ℃ to +40℃

100-20000 rpm High-Speed Refrigerated Centrifuge Temperature Controlled -20 ℃ to +40℃

Place of Origin China
Brand Name MKE
Certification CE,ISO13485,ISO9001,SFDA
Model Number VL-200R
Document Product Brochure PDF
Product Details
Product Type:
100-21000 Rpm High-Speed Refrigerated Centrifuge
Applications:
Hospitals,Veterinary Clinics,Food Labs,Universities & Colleges,Pharmaceutical Labs,Cell Culture Labs
Max Speed:
20000rpm
Max RCF:
28174xg
Max Capacity:
4*750ml
Temperature Control Range:
-20℃～+40℃
Matched Rotors:
Fixed Angle Rotors,swing Out Rotors
Display:
LCD
Warranty:
1 Year Warranty For The Whole Machine, 3 Years Warranty For The Compressor And 5 Years Warranty For The Motor. Free Replacement Parts And Shipping Within Warranty.
Highlight:

Temperature Controlled Refrigerated Centrifuge

,

21000 rpm Refrigerated Centrifuge

,

High Speed Refrigerated Centrifuge

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
Wooden Box
Delivery Time
7-15 work days
Payment Terms
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability
100 set/month
Product Description

The VL-200R centrifuge is ideal for labs requiring precise separation of samples under controlled conditions, offering unparalleled performance and safety.



Technical Specifications:

Speed range(rpm) 0-20000rpm adjustable Time range 1-99minutes 59s adjustable
Max Capacity(ml) 4*750ml Speed accuracy ±10r/min
RCF range (xg) 0-28174xg adjustable ACC/DEC 1-10 rates
Temperature control range -20℃～+40℃ Temperature control accuracy ±1℃
Noise(dBA) ≦58dB(A) Net weight(without rotor) 110KGS
Refrigerant R404A Power supply AC220V,50HZ,10A, 1300W
Dimension(mm) 680x580x420mm(LxWxH)


Key Features

Efficient Design:

  • Durable metal construction with a stainless steel chamber resistant to disinfectants.
  • Observation window for monitoring speed and noise levels.
  • Intuitive LCD interface displaying critical parameters like speed, RCF, and error codes.

Enhanced Usability:

  • CFC-free cooling with temperatures down to –20°C for sensitive samples.
  • Stores up to 30 customizable programs, retaining settings even after power-off.
  • Provides 10 customizable acceleration and braking ramps for better sedimentation results.
  • Easily replaceable rotors and automatic troubleshooting alerts simplify use.

Superior Safety:

  • Adheres to IEC 61010 standards for reliability.
  • Lid interlock and emergency release functions enhance operational safety.
  • Comprehensive protection against overspeed, overheating, and imbalance ensures peace of mind.



TR21-MU high-speed refrigerated centrifuge




Matched Rotors(Customized rotors are available)

No. Item Max. capacity Max.speed Max.RCF Note
NO.1  Angle rotor 12x1.5/2.2ml 20000r/min 28174xg PP/PC tube

Adapter



 12x0.5ml PP/PC tube

Adapter

 12x0.2ml PP/PC tube

NO.2



 Angle rotor 12x5ml 17000r/min 20680xg PP/PC tube

Adapter



 12x1.5ml PP/PC tube
NO.3  Angle rotor 24x1.5/2.2ml 16000r/min 24041xg PP/PC tube

Adapter



 24x0.5ml PP/PC tube

Adapter



 24x0.2ml PP/PC tube
NO.4  Angle rotor 10x15ml 15000r/min 26161xg PP/PC tube

Adapter



 10x10ml PP/PC tube

Adapter



 10x5ml PP/PC tube

Adapter



 10x1.5ml PP/PC tube
N0.5 Angle rotor 48×1.5/2.2ml 15000r/min 23394xg PP/PC tube

Adapter



 48x0.5ml PP/PC tube

Adapter



 48x0.2ml PP/PC tube
NO.6 Angle rotor 12×10ml 15000r/min 21130xg PP/PC tube

Adapter



 12×5ml PP/PC tube

Adapter



 12x1.5ml PP/PC tube
NO.7 Angle rotor 6×50ml 14000r/min 21255xg PP/PC tube

Adapter



 6×15ml PP/PC tube

Adapter



 6×10ml PP/PC tube

Adapter



 6×1.5ml PP/PC tube
NO.8  Angle rotor 6×100ml 11000r/min 14610xg PP/PC tube

Adapter



 6×50ml PP/PC tube

Adapter



 6×15ml PP/PC tube

Adapter



 6×10ml PP/PC tube

Adapter



 6×5ml PP/PC tube

Adapter



 6×1.5ml PP/PC tube

NO.9



 Angle rotor 8×50ml 12000r/min 17226xg PP/PC tube

Adapter



 8×15ml PP/PC tube

Adapter



 8×10ml PP/PC tube

Adapter



 8×1.5ml PP/PC tube

NO.10



 Swing bucket 4×250ml 4000r/min 3049xg Round cup

Adapter



 4×9x5/2ml PP/PC tube

Adapter



 4×5x15/10ml PP/PC tube

Adapter



 4×50ml PP/PC tube

Adapter



 4×100ml PP/PC tube

Adapter



 4×9x1.5ml PP/PC tube

NO.11



 Swing bucket 4×400ml 4000r/min 3049xg Square cup

Adapter



 4×16x5/2ml PP/PC tube

Adapter



 4×9x15/10ml PP/PC tube

Adapter



 4×4x50ml PP/PC tube

Adapter



 4×100ml PP/PC tube

Adapter



 4×15x1.5ml PP/PC tube

NO.12



 Swing bucket 4×500ml 4000r/min 3354xg Round cup

Adapter



 4×17x5/2ml PP/PC tube

Adapter



 4×8x15/10ml PP/PC tube

Adapter



 4×3x50ml PP/PC tube

Adapter



 4×100ml PP/PC tube
NO.13 Swing bucket 4×600ml 4000r/min 3354xg Square cup

Adapter



 4×25x5/2ml PP/PC tube

Adapter



 4×12x15/10ml PP/PC tube

Adapter



 4×5x50ml PP/PC tube

Adapter



 4×4x100ml PP/PC tube
NO.14 Swing bucket 4×750ml 4000r/min 3443xg Round cup

Adapter



 4×26x5/2ml PP/PC tube

Adapter



 4×13x15/10ml PP/PC tube

Adapter



 4×5x50ml PP/PC tube

Adapter



 4×3x100ml PP/PC tube
NO.15  Microplate rotor 2×2×96 hole 4200r/min 2860xg Square cup

Adapter



 2×32×1.5ml PP/PC tube


WHY CHOOSE US



  • Direct from the Manufacturer: Enjoy competitive pricing on all our products.
  • Certified Excellence: Experience premium quality with our CE and ISO certified products.
  • Customization at Its Best: Benefit from our robust OEM and ODM capabilities tailored to your specific needs.
  • Reliable Production and Delivery: Trust us for guaranteed on-time production and delivery of your orders.
  • Comprehensive Support: Rely on our comprehensive after-sales service, including complimentary product accessories.
  • Expertise You Can Trust: We stand behind our 15 years of experience in R&D and production of medical centrifuge machines.

High Speed 16500rpm Refrigerated Centrifuge with "Low-Noise" Patent Certification 11



Our Factory Introduction



We have a standardized production workshop operated by a dedicated team that ensures quality in every laboratory centrifuge and lab equipment we produce. Our R&D division includes design engineers, technology specialists, qualified experts, and process control managers. Following a strict quality control system, our specialists oversee the entire production process, from design and R&D to testing, production, quality inspection, and packaging.

  • Specialize in centrifuges.

  • With decades of experience, we've exported to 80+ countries.

  • Proven Reputation: SGS and Intertek inspected, underlining our reliablity.

  • Manufacturing Capabilities: 6 floors, 3000 sqm each, dedicated to manufacturing and quality control.

High Speed 16500rpm Refrigerated Centrifuge with "Low-Noise" Patent Certification 12



MKE Exhibition

High Speed 16500rpm Refrigerated Centrifuge with "Low-Noise" Patent Certification 13



Packaging & Delivery



MKE centrifuges are securely packaged in wooden cases or carton boxes, selected according to the weight and size of the goods. This ensures they are delivered in excellent condition to customers worldwide.

High Speed 16500rpm Refrigerated Centrifuge with "Low-Noise" Patent Certification 14

After-Sale WARRANTY





High Speed 16500rpm Refrigerated Centrifuge with "Low-Noise" Patent Certification 15



FAQ


Q: How long is the production lead time?
A: Within 7-15 workdays after receiving deposit.

Q: What's your warranty?
A: All MKE products have ONE year warranty, five-year motor warranty. We won't charge clients any money for repairing the machine during one-year warranty time,the freight is also on us.

Q: How about the sample of MKE Centrifuge?
A: We could send you the samples but the freightand the sample are charged.

Q: Which kinds of Certificate would you have?
A: ISO9001, ISO13485, CE

Q: Do you offer centrifuges with voltage and plug options suitable for my country/region?
A: Yes, we provide centrifuges with various voltage and plug options to meet different country/region requirements. Please let us know your specific needs, and we will ensure compatibility.

Q: Are there customized options available for specific applications?
A: Absolutely! We offer customization options to meet specific application needs. Let us know your requirements, and we will tailor the centrifuge accordingly.
