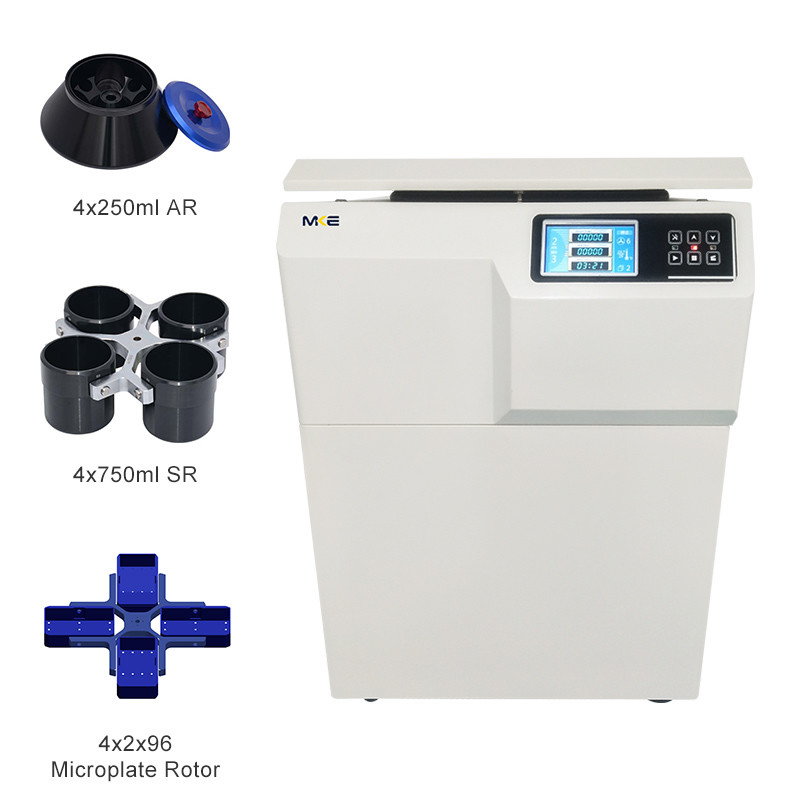

High-Speed Large Volume Refrigerated Centrifuge for Medical and Industrial Applications
  • High-Speed Large Volume Refrigerated Centrifuge for Medical and Industrial Applications
  • High-Speed Large Volume Refrigerated Centrifuge for Medical and Industrial Applications
  • High-Speed Large Volume Refrigerated Centrifuge for Medical and Industrial Applications
  • High-Speed Large Volume Refrigerated Centrifuge for Medical and Industrial Applications
High-Speed Large Volume Refrigerated Centrifuge for Medical and Industrial Applications

High-Speed Large Volume Refrigerated Centrifuge for Medical and Industrial Applications

Place of Origin China
Brand Name MKE
Certification CE, ISO, IUV
Model Number VCK-21R
Document Product Brochure PDF
Product Details
Product:
High-Speed Large Volume Refrigerated Centrifuge For Medical
Temperature Control Range:
-20℃～+40℃
Maximum Capacity:
4x750ml
Rcf:
26832 Xg
Acceleration Profiles:
1~10
Rotor Identification:
Automatic
Certifications:
CE, ISO9001
Timer:
1-99 Minutes
Max Speed:
20000rpm
Highlight:

Large Volume Refrigerated Centrifuge

,

Medical Refrigerated Centrifuge

,

Industrial Refrigerated Centrifuge

Product Description

The centrifuge features an intuitive LCD display, customizable programming options, and versatile rotor compatibility, accommodating a wide range of tube sizes and capacities. It also boasts low noise operation, adhering to international safety standards with built-in features such as overspeed, over-temperature protection, and an emergency lid-lock release. The VCK-21R is the perfect choice for labs seeking reliable, high-capacity centrifugation with the flexibility to support various applications.




Technical Specifications:


Speed range(rpm) 0-20000rpm adjustable Time range 1-99minutes 59s adjustable
Max Capacity(ml) 4*750ml Speed accuracy ±10r/min
RCF range (xg) 0-26832xg adjustable ACC/DEC 1-10 rates
Temperature control range -20℃～+40℃ Temperature control accuracy ±1℃
Noise(dBA) ≦58dB(A) Net weight(without rotor) 190KGS
Power supply AC220V,50HZ,16A, 2150W Dimension(mm) 700x600x820mm(LxWxH)






Features.

  • High power AC frequency conversion motor direct drive, high precision, low noise, long service life.
  • Adopt high-efficiency environmental protection refrigeration system, no environmental pollution, high precision temperature control.
  • Microcomputer control, colour screen display, programmable and storable, rotational speed, centrifugal force, time can be displayed at the same time.
  • Vertical high-speed freezing centrifuge, a multi-function machine; both high-speed centrifugation (20000rpm), but also low-speed large-capacity 4x750mI separation.
  • Six levels of damping shock absorption, centrifugal effect to achieve the best, 10 kinds of speed curve, 30 kinds of free procedures can be programmed and stored to meet different experimental requirements
  • Door cover, body configuration double silicone sealing ring, sealing performance is particularly good, long-term use does not aging, not deformation
  • "Mute" patented technology, the highest speed operation is less than 58 dB.
  • According to different experiments can be prepared 0.5-500ml adapter.
  • Multi-level protection functions such as overspeed, over-temperature, unbalance, electronic safety door lock, etc. ensure the safety of human and machine.



Matched Rotors


No. Rotor Max. capacity Max.speed Max.RCF Note



NO.1

Angle rotor 10×5ml



20000r/min



26832xg

 PP/PC tube
Adapter 10×1.5ml PP/PC tube
NO.2 Angle rotor 24x1.5/2.2ml 16000r/min 24041xg PP/PC tube
Adapter 24×0.5ml PP/PC tube
Adapter 24×0.2ml PP/PC tube
NO.3 Angle rotor 12×10ml



15000r/min







21130xg





 PP/PC tube
Adapter 12×5ml PP/PC tube
Adapter 12×1.5ml PP/PC tube

NO.4



 Angle rotor 10×15ml 15000r/min 26161xg PP/PC tube
Adapter 10×5ml PP/PC tube
Adapter 10×1.5ml PP/PC tube
NO.5 Angle rotor 6×50ml 15000r/min 24400xg PP/PC tube
Adapter 6×15ml PP/PC tube
Adapter 6×10ml PP/PC tube
Adapter 6×1.5ml PP/PC tube
NO.6 Angle rotor 8×50ml 12000r/min



17226xg



 PP/PC tube
Adapter 8×15ml PP/PC tube
Adapter 8×10ml PP/PC tube
Adapter 8×1.5ml PP/PC tube
NO.7 Angle rotor 6×100ml 13000r/min



20406xg



 PP/PC tube
Adapter 6×50ml PP/PC tube
Adapter 6×15ml PP/PC tube
Adapter 6×10ml PP/PC tube
Adapter 6×5ml PP/PC tube
Adapter 6×1.5ml PP/PC tube
NO.8 Angle rotor 4×250ml 10000r/min



14758xg



 PP/PC tube
Adapter 4×100ml PP/PC tube
Adapter 4×50ml PP/PC tube
Adapter 4×5x15ml PP/PC tube
Adapter 4×5x10ml PP/PC tube
Adapter 4×10×1.5ml PP/PC tube
NO.9 Swing bucket 4×600ml 4000r/min



3354xg



 Square cup
Adapter 4×25x5/2ml PP/PC tube
Adapter 4×12×15/10ml PP/PC tube
Adapter 4×5×50ml PP/PC tube
Adapter 4×4×100ml PP/PC tube



NO.10



 Swing rotor 4×500ml





4000r/min









3354xg





 Round cup
Adapter 4×17×5/2ml PP/PC tube
Adapter 4×8×15/10ml PP/PC tube
Adapter 4×3×50ml PP/PC tube
Adapter 4×100ml PP/PC tube

NO.11



 Swing rotor 4×750ml 4000r/min 3443xg Round cup
Adapter 4×26×5/2ml PP/PC tube
Adapter 4×13×15/10ml PP/PC tube
Adapter 4×5×50ml PP/PC tube
Adapter 4×3x100ml PP/PC tube
NO.12 Microplate rotor 4×2×96 well 4000r/min 2978xg

4*2*96 deep well plate

4*4*96 shallow well plate
Adapter 4×32×1.5ml PP/PC tube




WHY CHOOSE US



  • Direct from the Manufacturer: Enjoy competitive pricing on all our products.
  • Certified Excellence: Experience premium quality with our CE and ISO certified products.
  • Customization at Its Best: Benefit from our robust OEM and ODM capabilities tailored to your specific needs.
  • Reliable Production and Delivery: Trust us for guaranteed on-time production and delivery of your orders.
  • Comprehensive Support: Rely on our comprehensive after-sales service, including complimentary product accessories.
  • Expertise You Can Trust: We stand behind our 15 years of experience in R&D and production of medical centrifuge machines.

High Speed 16500rpm Refrigerated Centrifuge with "Low-Noise" Patent Certification 11



Our Factory Introduction



We have a standardized production workshop operated by a dedicated team that ensures quality in every laboratory centrifuge and lab equipment we produce. Our R&D division includes design engineers, technology specialists, qualified experts, and process control managers. Following a strict quality control system, our specialists oversee the entire production process, from design and R&D to testing, production, quality inspection, and packaging.

  • Specialize in centrifuges.

  • With decades of experience, we've exported to 80+ countries.

  • Proven Reputation: SGS and Intertek inspected, underlining our reliablity.

  • Manufacturing Capabilities: 6 floors, 3000 sqm each, dedicated to manufacturing and quality control.

High Speed 16500rpm Refrigerated Centrifuge with "Low-Noise" Patent Certification 12



MKE Exhibition

High Speed 16500rpm Refrigerated Centrifuge with "Low-Noise" Patent Certification 13



Packaging & Delivery



MKE centrifuges are securely packaged in wooden cases or carton boxes, selected according to the weight and size of the goods. This ensures they are delivered in excellent condition to customers worldwide.

High Speed 16500rpm Refrigerated Centrifuge with "Low-Noise" Patent Certification 14

After-Sale WARRANTY





High Speed 16500rpm Refrigerated Centrifuge with "Low-Noise" Patent Certification 15



FAQ


Q: How long is the production lead time?
A: Within 7-15 workdays after receiving deposit.

Q: What's your warranty?
A: All MKE products have ONE year warranty, five-year motor warranty. We won't charge clients any money for repairing the machine during one-year warranty time,the freight is also on us.

Q: How about the sample of MKE Centrifuge?
A: We could send you the samples but the freightand the sample are charged.

Q: Which kinds of Certificate would you have?
A: ISO9001, ISO13485, CE

Q: Do you offer centrifuges with voltage and plug options suitable for my country/region?
A: Yes, we provide centrifuges with various voltage and plug options to meet different country/region requirements. Please let us know your specific needs, and we will ensure compatibility.

Q: Are there customized options available for specific applications?
A: Absolutely! We offer customization options to meet specific application needs. Let us know your requirements, and we will tailor the centrifuge accordingly.
